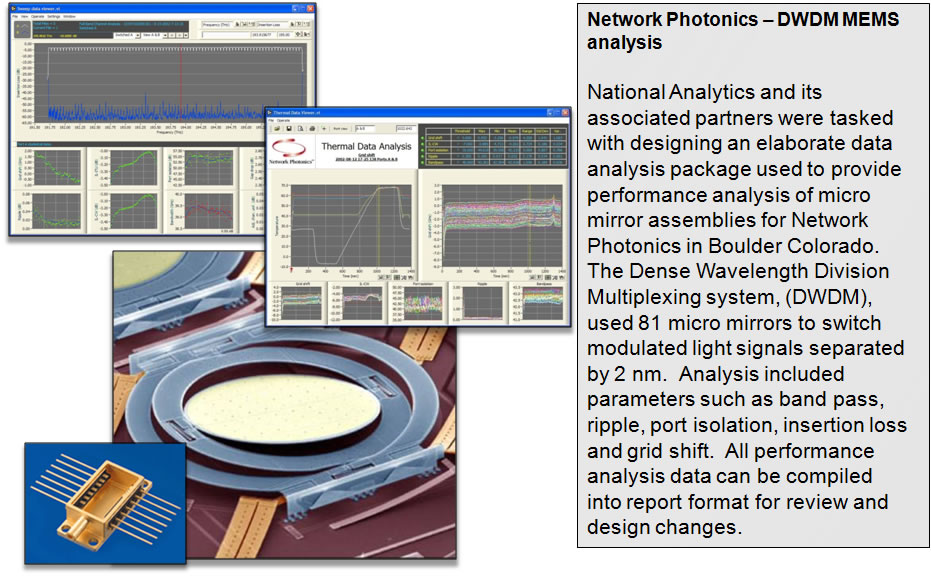

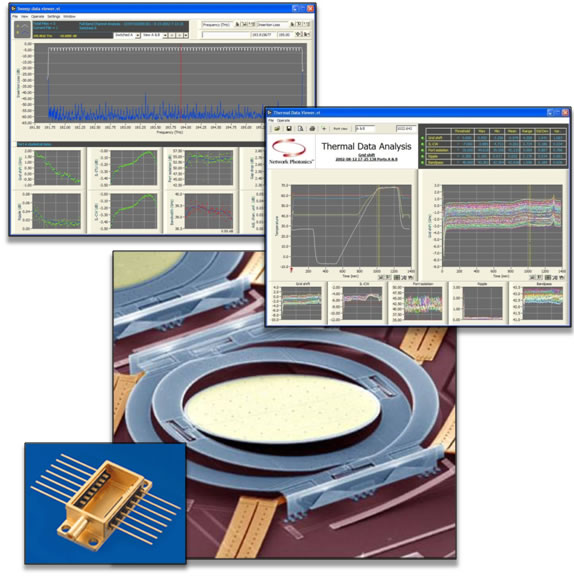

National Analytics and its associated partners were tasked with designing an elaborate data analysis package used to provide performance analysis of micro mirror assemblies for Network Photonics in Boulder Colorado. The Dense Wavelength Division Multiplexing system, (DWDM), used 81 micro mirrors to switch modulated light signals separated by 2 nm. Analysis included parameters such as band pass, ripple, port isolation, insertion loss and grid shift. All performance analysis data can be compiled into report format for review and design changes.
